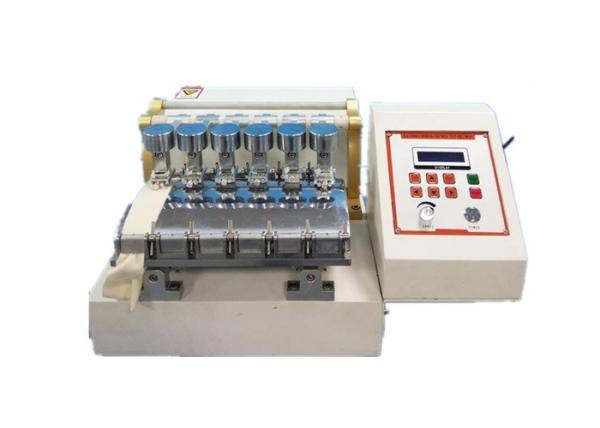

Durable Textile Testing Instruments Friction Dyeing Fastness Rubbing Testing Equipment

Brand Name : HTI

Model Number : HTC-006

Certification : AATCC 15, EN ISO 105 Part E04, DIN 54020

Place of Origin : Guangdong,China(Mainland)

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, L/C, Western Union

Supply Ability : 300 sets per year

Delivery Time : 15 working days

Packaging Details : Plywood box

Model : HTC-0328

Pruduct name : Textile friction dyeing fastness rubbing testing equipment

Application : material rubbing abrasion resistance test

Speed : 30CPM

Counting : 1~99999

Dimensions : 50*55*35cm(LxWxH)

Power : AC220V, 50Hz

Standards : JIS-L0801, 0823, 0849, 1006, 1084, K6328, P8236

Contact Now

Textile friction dyeing fastness rubbing testing equipment

Application:

The machine Mainly uses in dyeing textiles, flocking fabric( tufting strength tests), leatherette( crock test), paperboard, printing, ink, paint and other material rubbing abrasion resistance test ,control gray scale to assessment staining friction fastness Level.

JIS Standard Brief Introduction

Textile friction dyeing fastness rubbing testing equipment/tester

JIS test standard color dyeing fastness tester to rubbing is suitable for dyeing og fabrics-leather by rubbing the degree of discoloration, test method is based on the dry or wet white cotton cloth, wrapped in friction cone, then rubs caught in the trial stage of the test piece, you can access color fastness grade.

It includes standards: JIS-L0801, 0823, 0849, 1006, 1084, K6328, P8236.

Technical parameters——Textile friction dyeing fastness rubbing testing equipment/tester

Model number	DZ-328
Product name	JIS test standard Colour fastness testing machine for electric fabric dyeing
Speed	30cpm
Friction hammer load	200g
Auxiliary load	300g
Friction hammer size	45*50mm
Specimens	22*3cm
White cotton	5*5cm
Weight	About 60kg
Friction distance	100mm
Friction position	6 sets
Power supply	AC220V, 50Hz
Size	About (505535)cm
Motor	1/4HP
